GPS & GNSS receivers

geo-konzept supports its customers with modern technology, comprehensive know-how and many years of experience in finding economical and effective solutions for their businesses. As an independent provider, geo-konzept can offer both standard products as well as customized solutions.

geo-kombi

A receiver for any application!

Development of the geo-kombi was the logical result of many years of experience in machine control, positioning and surveying in agriculture and forestry as well as mining.
When the geo-kombi is outfitted with a GSM module, you have two controllers and an additional GPS receiver at your disposal. These can meet even high-complexity, customer-specific requirements, particularly in machine management and receiver control.
The numerous Internet protocols that geo-kombi supports out of the box make it the ideal receiver for more than just mobile applications. geo-kombi can be integrated into your GNSS network software as a GNSS raw data sensor without additional servers or PCs. For example, it can act as an easy-to-control reference station in a construction site network or as an affordable yet highly precise independent time server for communication or production tasks.

Features

— Modular design
— Highly accurate and independent
— Flexible applications
— Perfect for integrating GNSS technology into existing systems and new designs

Data sheet

Trimble BX982

Perfectly calibrated to your system!

Preparing yourself for upcoming developments is as easy as using the Trimble BX982 to achieve the highest degree of variability.
Trimble BX982 can be installed in existing systems easily and quickly. Two antenna connections form the basis for a dual antenna heading solution. Regardless of which accuracy level you need, this receiver offers them all. The BX982 supports GPS, GLONASS, Galileo as well as BeiDou and can also be used as a base station with external radio. The web interface offers numerous configuration options.







Features

Dual antenna heading solution possible
— Update rates up to 50 Hz
— A variety of accuracy levels
— Available in a number of variants
— Compact and robust design (IP67)

Data sheet

Trimble BX935 INS

Adaptable and robust!

Precise positioning is possible with the Trimble BX935-INS. The integrated inertial system can provide position information including azimuth angle, even in difficult GPS conditions.
The Trimble BX935-INS is available in numerous configurations. This board keeps your options open, whether with GPS, GLONASS, Galileo, BeiDou, INS or various update rates. A multitude of accuracy levels and correction data sources are available. Furthermore, the RS232 interface provides fast connection options to existing systems.







Features

Flexible applications
— Compact and robust design (IP67)
— Update rates up to 100 Hz possible
— A variety of accuracy levels
— Compact and robust design (IP67)

Data sheet

Trimble PG 200

An easy-to-use GNSS receiver for any purpose!

The Trimble PG200 now offers easy access to more accurate position data. Small, robust (IP65) and easy to use, the receiver can be carried in a belt bag or on a pole.
The Trimble PG200 offers submeter accuracy in real time, thanks to its integrated antenna. Long job times are possible with the internal battery (life: approx. 10 hrs.). Data transfer occurs via Bluetooth and is, therefore, compatible with almost all hardware solutions. The receiver is also very light and designed to be extremely easy to use.







Features

— Light and robust (IP65)
— Flexible applications
— Wireless data transfer

Data sheet

Stonex S5

Flexible from submeter to L1 RTK!

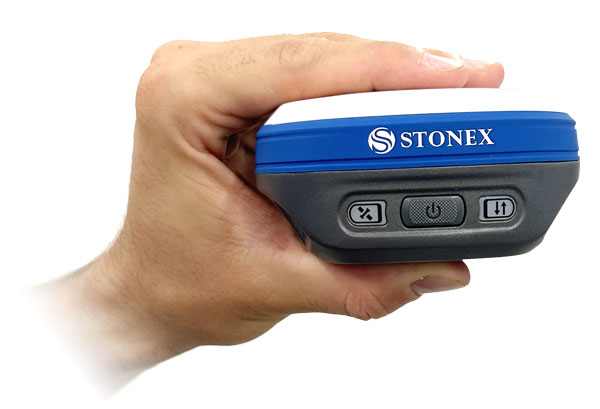

The Stonex S5 GNSS receiver offers the fastest way to achieve submeter accuracy. Compact and well protected (IP67), the Stonex S5 is an option for many applications. The receiver provides submeter accuracy in combination with a patch antenna. If this isn’t enough, an external antenna and RTK corrections can be used to achieve an L1-RTK solution. Long job times are possible with the internal battery (life: approx. 7 hrs.). Data transfer occurs via Bluetooth and is, therefore, compatible with almost all hardware solutions. The receiver’s user friendliness is apparent in its permanently available web interface.







Features

— Light and robust (IP67)
— L1 RTK option
— Wireless data transfer

Data sheet

Stonex S900T

Point precision anytime!

The Stonex S900T is your partner for surveying at the highest accuracy requirements. Even in difficult conditions, the S900T maintains a stable RTK solution. Thanks to the short initialization time, you are ready to work in no time. This robust receiver (IP67) includes a carrying case with enough room to accommodate a handheld.





Leistungsmerkmale

— Light and robust (IP67)
— Wireless data transfers possible
— Short initialization time
— Carrying case

Data sheet
